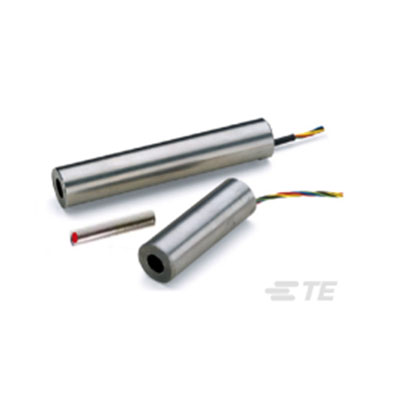

Model Number: HR-CAT-LVDT0020

SPECIFICATIONS:

Electrical Characteristics

Supply Voltage (V): 3
Excitation Frequency (Hz): 400 – 5000
Excitation Frequency (kHz): .4 – 5
Electrical Connections: Leads

Body Features

Form Factor: Cylindrical
Spring Loaded: Separate Core

Housing Features

Housing Material: Stainless Steel
Housing Diameter: 20.6 mm [ .812 in ]

Dimensions

Full Stroke Ranges (mm): ±1.27, ±101.6, ±12.7, ±12.7, ±127, ±190.5, ±2.54, ±25.4, ±254, ±5.08, ±50.8, ±7.62, ±76.2
Full Stroke Ranges (in): ±.05, ±.1, ±.2, ±.3, ±.5, ±1, ±10, ±2, ±3, ±4, ±5, ±7.5

Usage Conditions

Operating Temperature: -55 – 150 °C [ -67 – 302 °F ]
IP Rating: 61

Industry Standards

Industry Standards: RoHS

Other

Linearity (% of Span): ±.25
