The P503 RIPS® (Rotary Inductive Position Sensor) is a low-cost assembly designed particularly for OEM users.

Like all Positek sensors it provides a linear output proportional with angle of rotation. Each unit is supplied with the output calibrated to the angle required by the customer, between 15 and 160 degrees.

With suitable mounting and bearings, overall performance, repeatability and stability are outstanding over a wide temperature range.

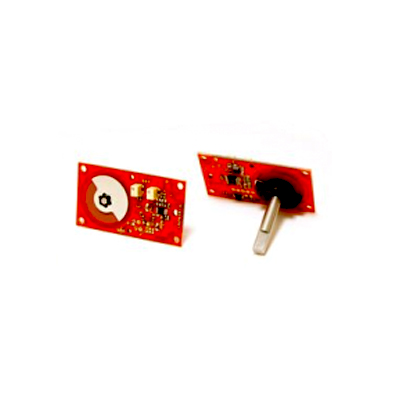

This very compact sensor, supplied as a printed circuit board sub-assembly, has a range of electrical options.
The P503 is ready to mount directly in customer’s equipment. Connections to the sensor are made via solder pins.
