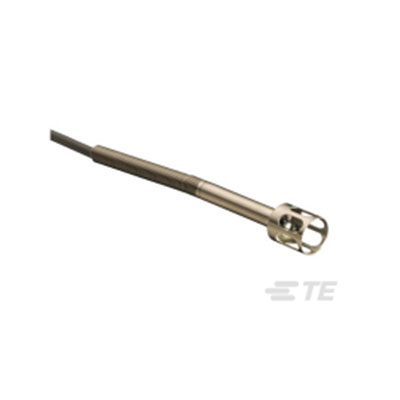

Model Number: DRES-405-CAT-NTC0051

SPECIFICATIONS:

Product Type Features

Model Number: DRES-405 PROBE,THERM
Sensor Type: NTC Probe

Body Features

Wire Connection: 1/4″ plug connector

Dimensions

Wire Length: 3048 mm [ 118.872 in ]
Diameter: 13 mm [ .5 in ]
Length: 3048 mm [ 118.872 in ]

Usage Conditions

Resistance (at Tref) (kΩ): 2.2
Tolerance Resistance (%): ± 1
Ambient Temperature Range: -40 – 125 °C [ -40 – 257 °F ]
T_ref for Resistance (°C): 25 °C
Tolerance Class: Range
Temperature Accuracy (°C): ± .1 from 0 – 70

Operation/Application

Wire/Cladding Connection: 24 AWG Stranded insulated cable

Packaging Features

Package: DRES-405 PROBE,THERM
