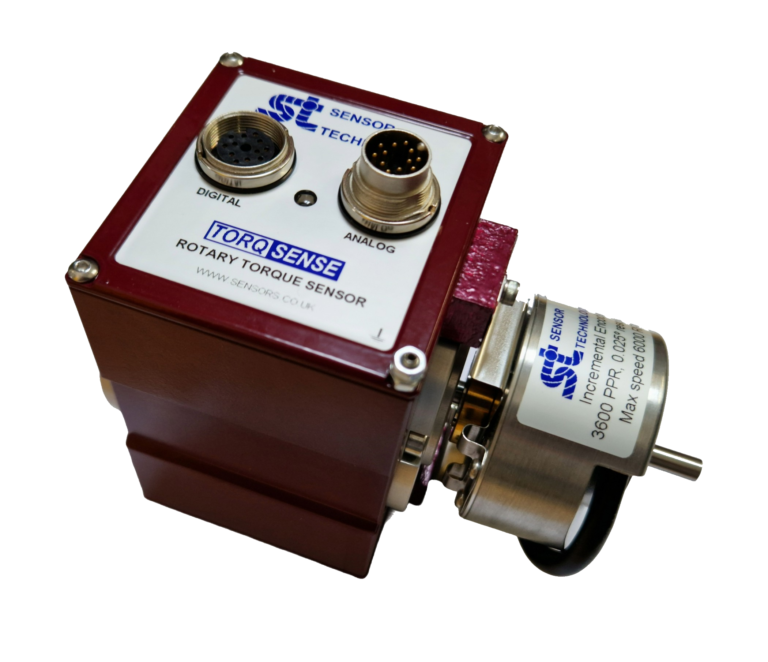

The SGR series transducers use modern strain gauge signal conditioning techniques to provide a high bandwidth, low cost torque measuring solution with high overrange, and overload capabilities and a wide range of digital outputs.

Key Benefits

• Transducers from 175mNm to 20Nm (Higher ranges to follow)
• Accuracy ±0.1%
• High mechanical overload 400%
• Overrange reading 250%
• High digital sample rate of 4000 samples per second
• Digital outputs – RS232 and USB (standard), CANbus and Ethernet (optional).
• Compatible with TorqView Advanced Torque Monitoring Software
• Non contact signal transmission, no slip rings to wear out
• Up to 10000 pulses per revolution
• Down to 0.009º resolution
• Speed up to 9000 RPM
