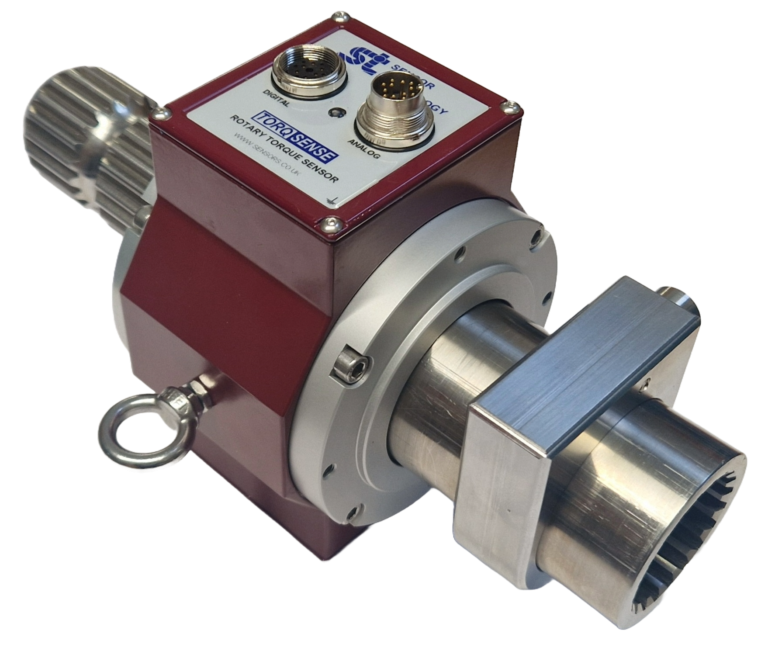

The wide input voltage range (11V – 32V) and available analogue and digital outputs make it a versatile solution for various PTO applications.

Key Benefits

• Transducers up to 2000Nm
• Compatible with all PTO spline types
• Accurate measurement of torque and speed for testing equipment that use the PTO shafts
• Anti rotation eye hook, to stop transducer spinning around with the shaft.
• User configurable limit outputs
• Accuracy ±0.1%
• High mechanical overload 400%
• Overrange reading 250%
• High digital sample rate of 4000 samples per second
• Digital outputs – RS232 and USB (standard), CANbus and Ethernet (optional).
• Compatible with TorqView Advanced Torque Monitoring Software
